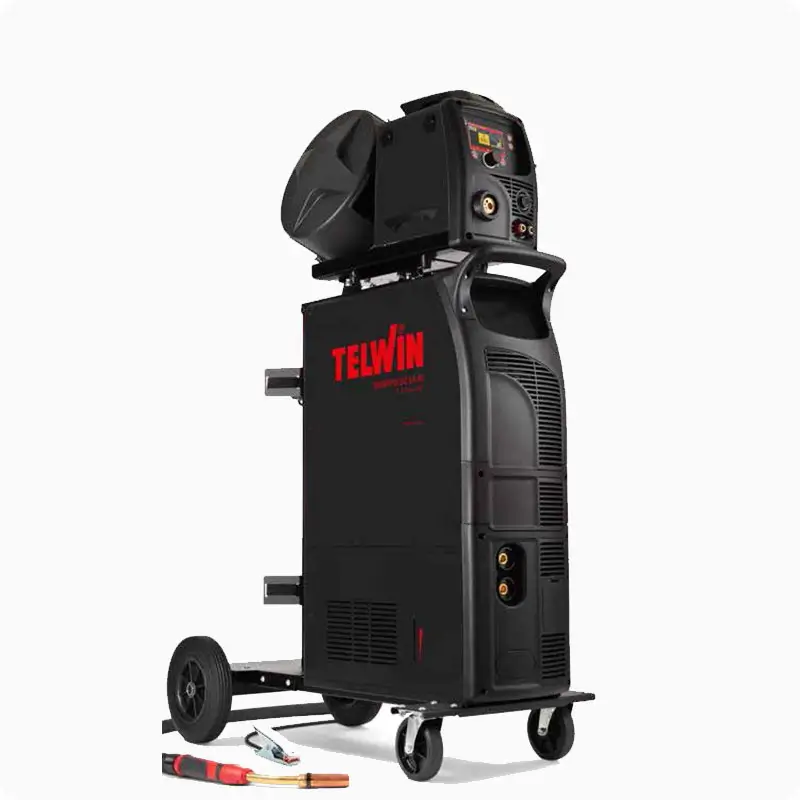

Inverpulse 60.30 Wave Aqua Ηλεκτρική Μηχανή Συγκόλλησης

Advanced Telwin Inverpulse 60.30 Wave Wave multiprocess inverter welder in Aqua / water-cooled package configuration. Designed for MIG-MAG, FLUX, BRAZING, MMA and TIG DC-Lift applications, it supports Wave OS, synergic programs, USB data handling, PULSE/POP welding and advanced arcs such as ROOT-MIG, ATC and DEEP-MIG for controlled, repeatable industrial welding.

The Inverpulse 60.30 Wave Aqua is a high-end Telwin multiprocess inverter welding machine for MIG-MAG, FLUX gas-shielded welding, BRAZING, MMA and TIG DC-Lift. Built for professional and industrial use, the Wave platform is intended for users who need more than basic welding power: it offers process control, data handling, advanced welding arcs and a modern operating interface designed to improve quality, repeatability and productivity.

This Aqua / water-cooled package belongs to the Inverpulse 60.30 Wave family. It uses Wave OS to make welding operations more customizable, traceable and easier to manage, with synergic parameter control and the ability to store, recall and export welding programs. It is especially useful for industrial environments where welding quality, process control and cost monitoring matter just as much as raw amperage.

The Inverpulse 60.30 Wave Aqua is designed for demanding users who need advanced control over the welding curve. PULSE and POP processes help improve welding quality and aesthetics, especially on aluminium and stainless steel. ROOT-MIG is useful for controlled first passes, ATC supports work on thin materials with reduced heat distortion, and DEEP-MIG is aimed at greater penetration and higher speed on heavier steel applications. Wave OS also supports data saving and program management, which is valuable for companies that want repeatable procedures rather than depending only on operator memory.

Διαδικασία

MIG-MAG, FLUX, BRAZING, MMA, TIG DC-Lift

Τάση Δικτύου

Three-phase 230 / 400 V, 50 / 60 Hz

Έλεγχος

Wave OS, USB program/data handling, PULSE/POP, ROOT-MIG, ATC, DEEP-MIG

Εύρος Ρεύματος / Ισχύος

270 A max at 400 V; 200 A max at 230 V

Κύκλος Λειτουργίας

270 A at 60% / 210 A at 100% on 400 V

Συμβατότητα Σύρματος

Steel 0.6-2.0 mm, Inox 0.8-2.0 mm, Aluminium 0.6-1.6 mm, Flux 1.0-2.0 mm, Brazing 0.8-1.2 mm

Πρόωση Σύρματος

4 feed rolls; wire speed range 1.5-20 m/min

Βαθμός Προστασίας

IP23

Πρότυπο

EN 60974 series

Διαμόρφωση

Aqua / water-cooled package

Διαστάσεις

103 x 51 x 145 cm

Βάρος

87 kg
