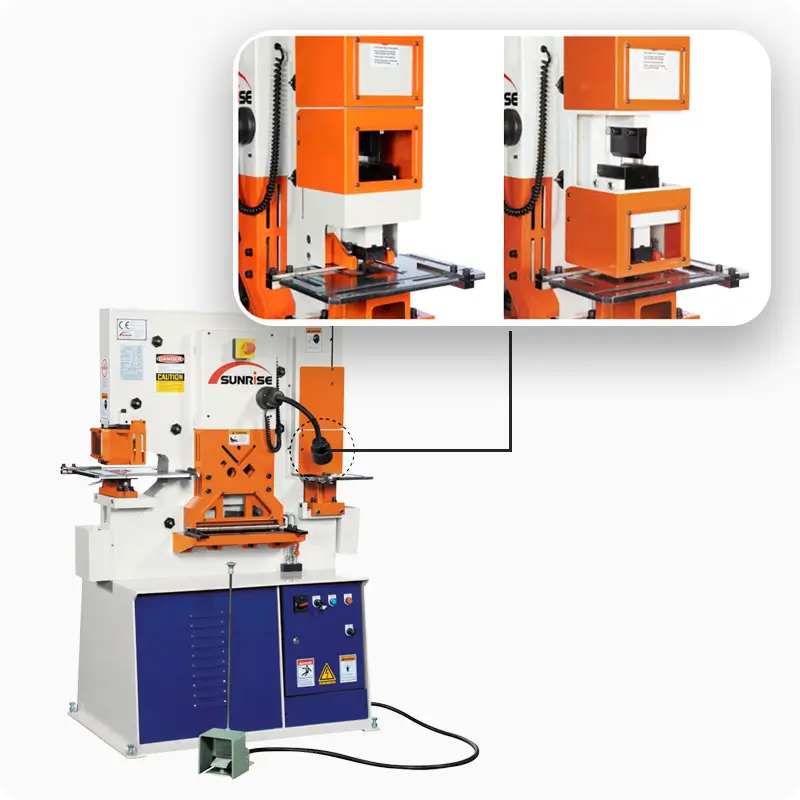

IW-60BN 60 Ton Hydraulic Ironworker with Notching Station

Compact 60-ton hydraulic ironworker with punching, angle shearing, flat-bar shearing, solid-bar shearing and rectangular notching capabilities. A practical configuration for workshops requiring both general shearing and dedicated notching operations.

SKU IW-60BN_en Category Hydraulic Iron Workers Tags 45 Ton, Hydraulic Ironworker, iron worker, IW-45K, Notching, puching, shear Share

Buy Now

The IW-60BN is a 60-ton K-Series hydraulic ironworker configured for versatile metal fabrication work, including punching, angle cutting, flat-bar shearing, bar shearing and rectangular notching.

Its punching station processes Ø22 mm holes through 20 mm mild steel and Ø40 mm holes through 11 mm material. The shearing stations handle angles up to 100 × 100 × 7 mm, flat bar up to 350 × 15 mm, round bar up to Ø40 mm and square bar up to 38 × 38 mm.

The integrated rectangular notcher has a capacity of 50.8 × 90 × 8 mm. A single-V press-brake capacity of 100 × 8 mm is also specified, while optional tooling is available for channel shearing, angle bending and pipe notching.

With its 7.5 HP motor, 34 cycles per minute at a 15 mm stroke and compact footprint, the IW-60BN offers a productive all-round solution for professional fabrication workshops.

Punching Force	60 Ton
Motor Power	7.5 hp
Punch Capacity 1	Ø22 × 20 mm
Punch Capacity 2	Ø40 × 11 mm
Punching Throat Depth	200 mm.
Max. Punching Stroke Length	40 mm
Punching Cycles per Minute	34 at 15 mm stroke
Punching Working Height	1050 mm
90° Angle Shearing Capacity	100 × 100 × 7 mm
Angle Shearing Working Height	1070 mm
Flat-Bar Shearing Capacity	350 × 15 mm
Blade Length	360 mm
Flat Shear Working Height	805 mm
Round-Bar Capacity	Ø40 mm
Square-Bar Capacity	38 × 38 mm
Channel Shearing Capacity	100 × 50 mm — optional
Rectangular Notcher	50.8 × 90 × 8 mm
V Notcher	Not included
Notching Working Height	1020 mm
Net Weight	Approximately 1285 kg
Gross Weight	Approximately 1390 kg
Machine Dimensions	1260 × 760 × 1690 mm
Packing Dimensions	1600 × 870 × 1910 mm

– Single-V Press Brake: 100 × 8 mm
– Multi-V Press Brake: Not specified
– Angle Bending: 65 × 65 × 8 mm — optional
– Pipe Notching: Ø60 mm — optional
– Channel Shear: 100 × 50 mm — optional
