KTECH 802 is an automatic double column bandsaw suitable to cut bars, tubes, solids and profiles up to 60° both on left and right.An automatic sawing machine with CNC managed feeder and sawframe movement, KTECH has 10″ touch screen display to manage the cutting process. The perfect working tool for professionals, big size production and industry application.
In stock

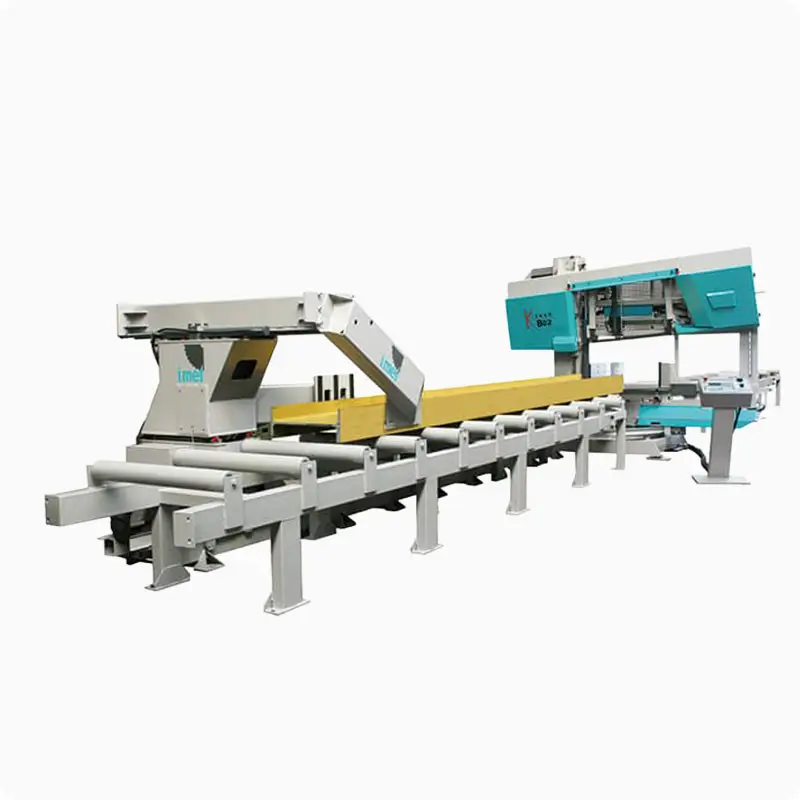

IMET KTECH 802 F6000
KTECH 802 is an automatic double column bandsaw suitable to cut bars, tubes, solids and profiles up to 60° both on left and right.An automatic sawing machine with CNC managed feeder and sawframe movement, KTECH has 10″ touch screen display to manage the cutting process. The perfect working tool for professionals, big size production and industry application.
| Cutting capacity at 90° | Round: 680mm, Square: 640mm, Rectangular: 820x610mmm |
|---|---|
| Cutting capacity at 45° (left) | Round: 550mm, Square: 550mm, Rectangular: 550x580mmm |
| Cutting capacity at 45° (right) | Round: 550mm, Square: 550mm, Rectangular: 550x580mmm |
| Cutting capacity at 60° (left) | Round: 370mm, Square: 370mm, Rectangular: 370x450mmm |
| Cutting capacity at 60° (right) | Round: 370mm, Square: 370mm, Rectangular: 370x450mmm |
| Cutting capacity with bundle device | Max: 800x600mm, Min: 80x80mm, Scrap-end: 400mm |
| Cutting capacity at 90° (solid C45) | 350 mm. |
| Blade tension | 2500kgf/cm2 |
| Blade size | 7260x41x1.3mm |
| Blade speed | 18, 100 m/min |
| Blade motor | 5.5KW |
| Feeder length | 6000mm |
| Minimum scrap end | 400mm |
| Cutting length | 6, 9.999mm |
| Dimensions | 9000x3700x2700mm (h 815mm) |
| Weight | 6000 Kg. |
| Hydraulic unit motor power | 2.2 KW |
