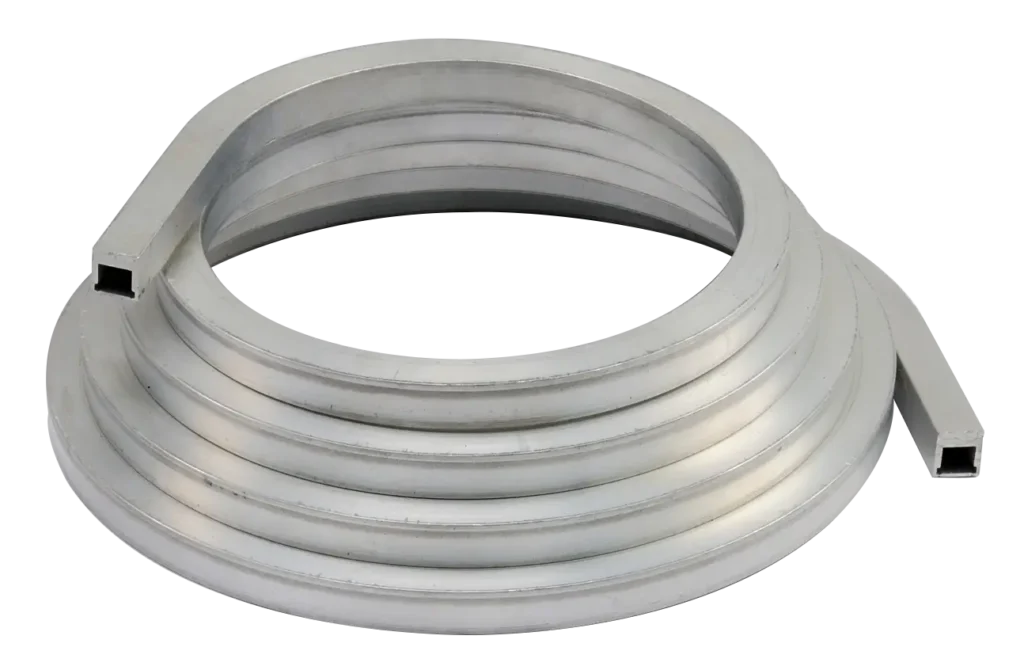

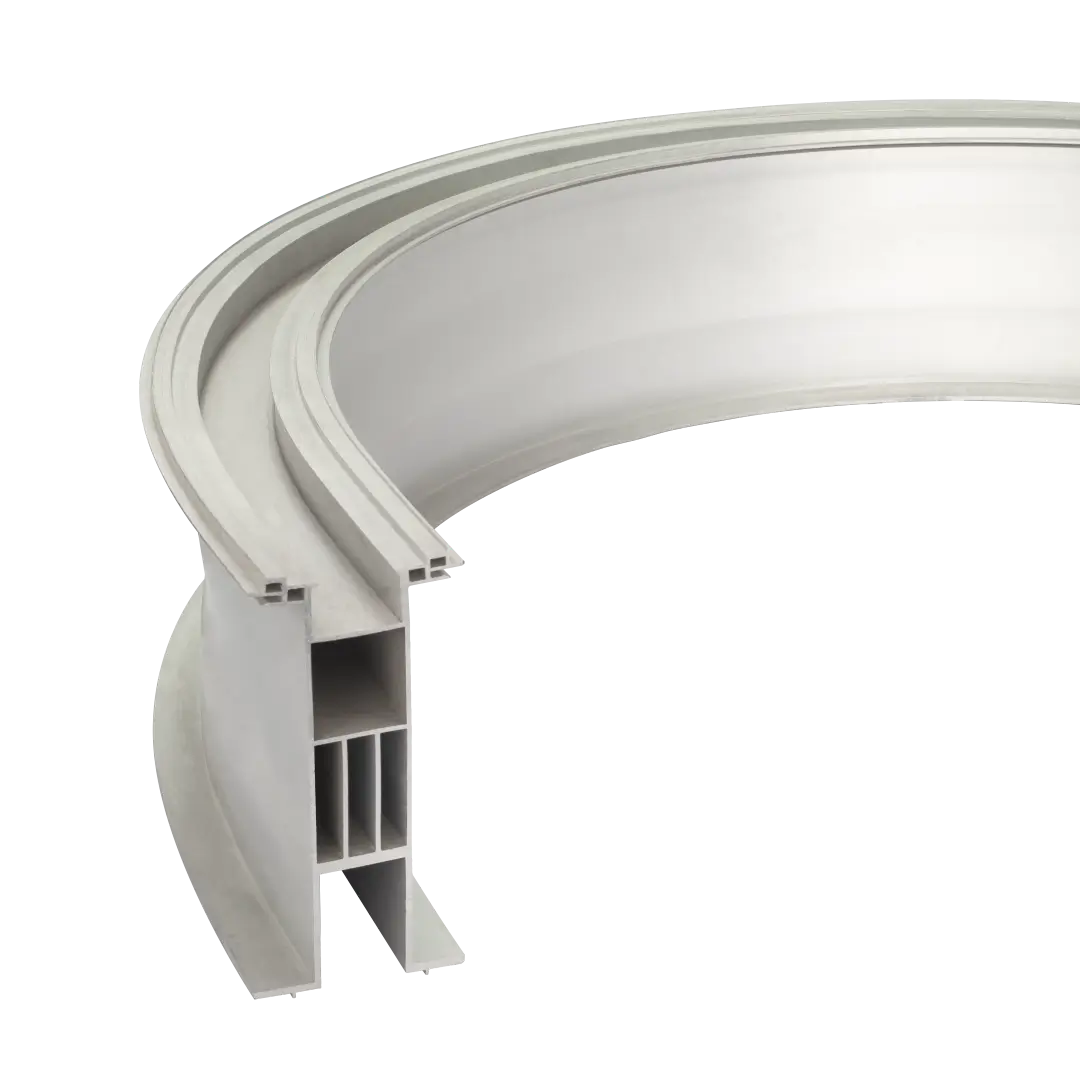

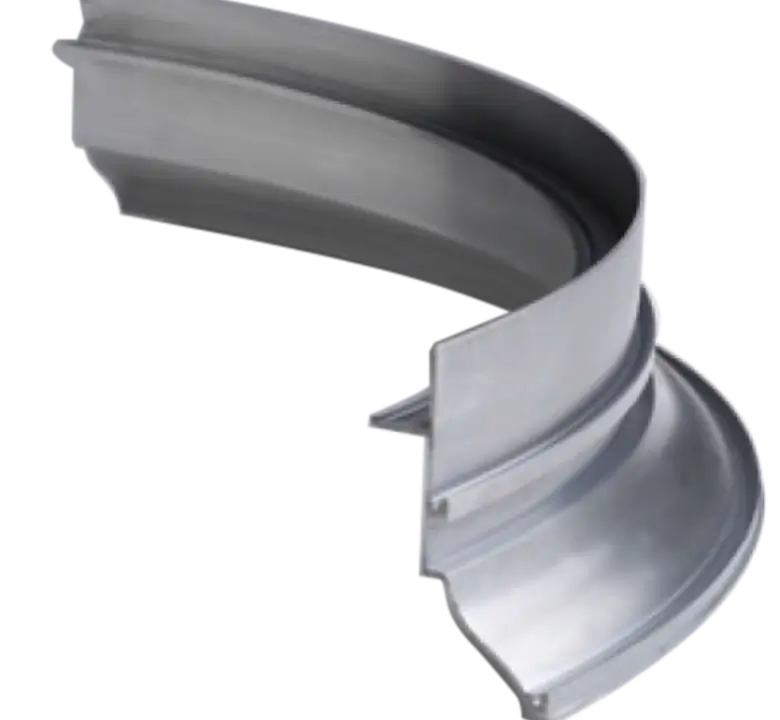

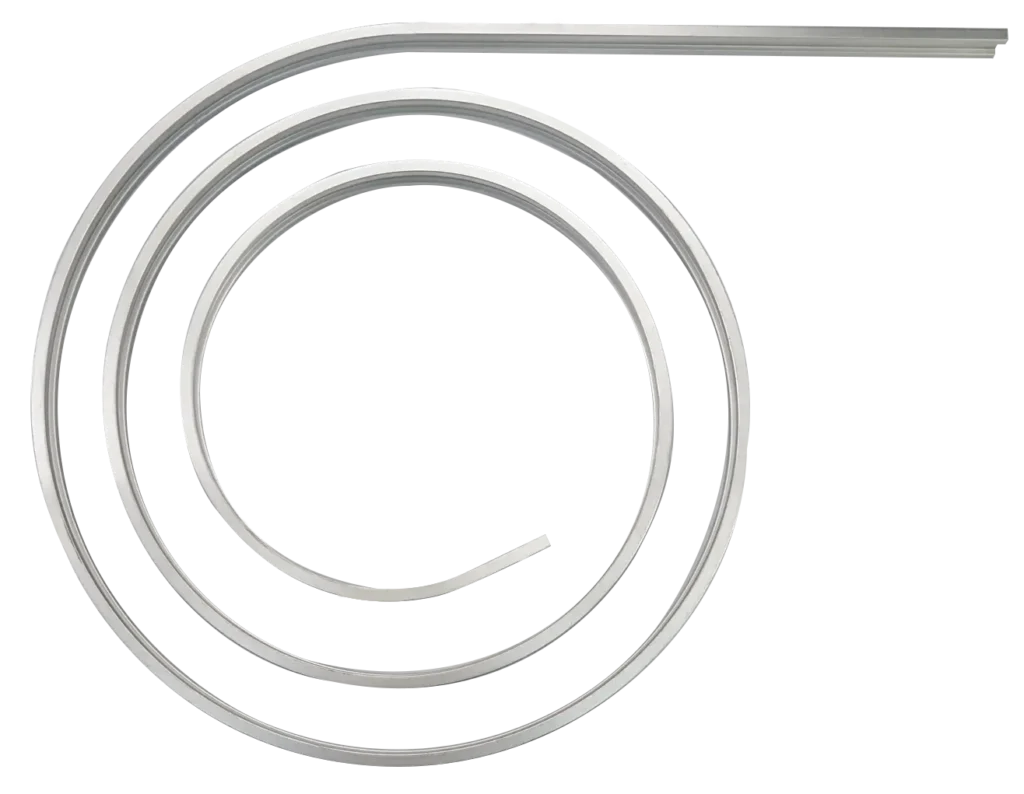

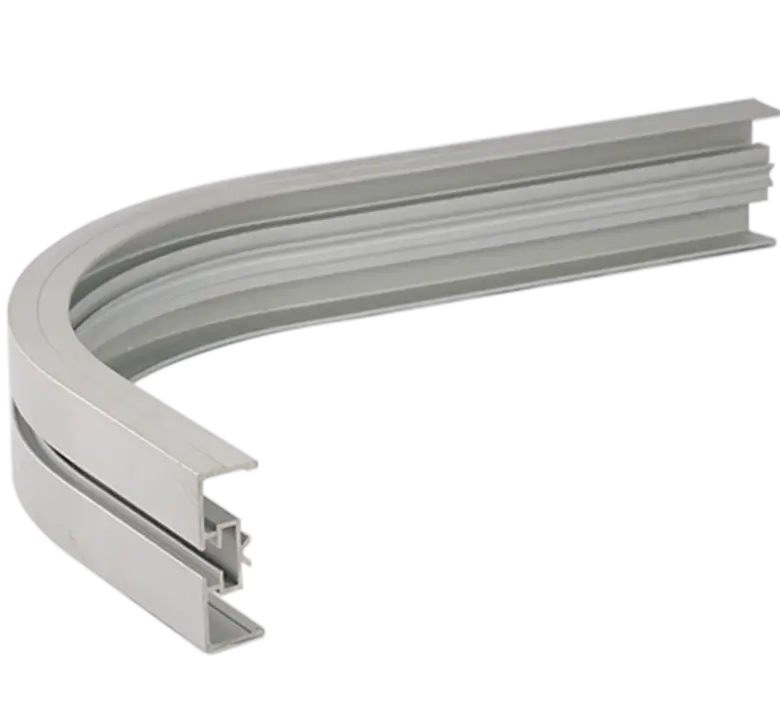

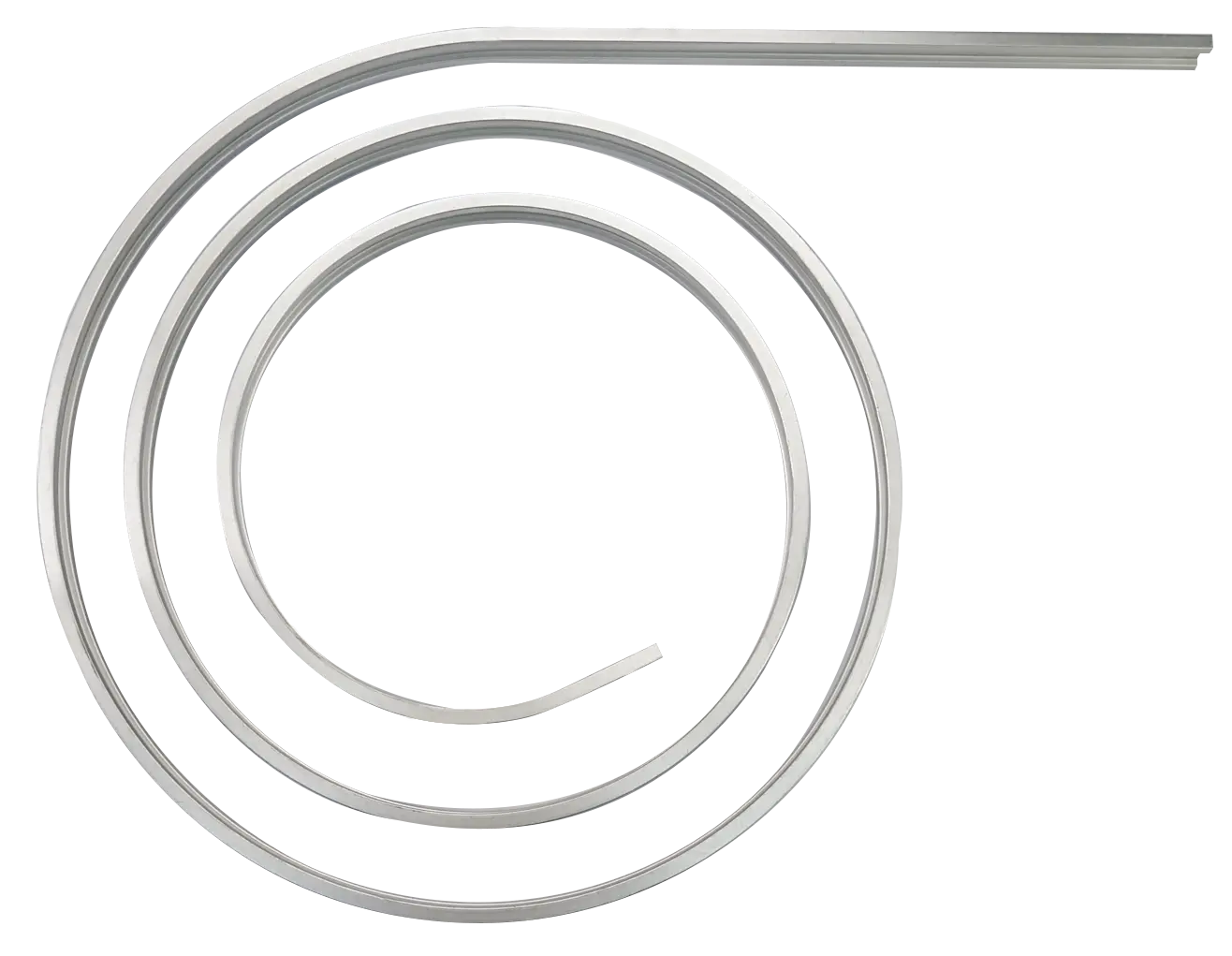

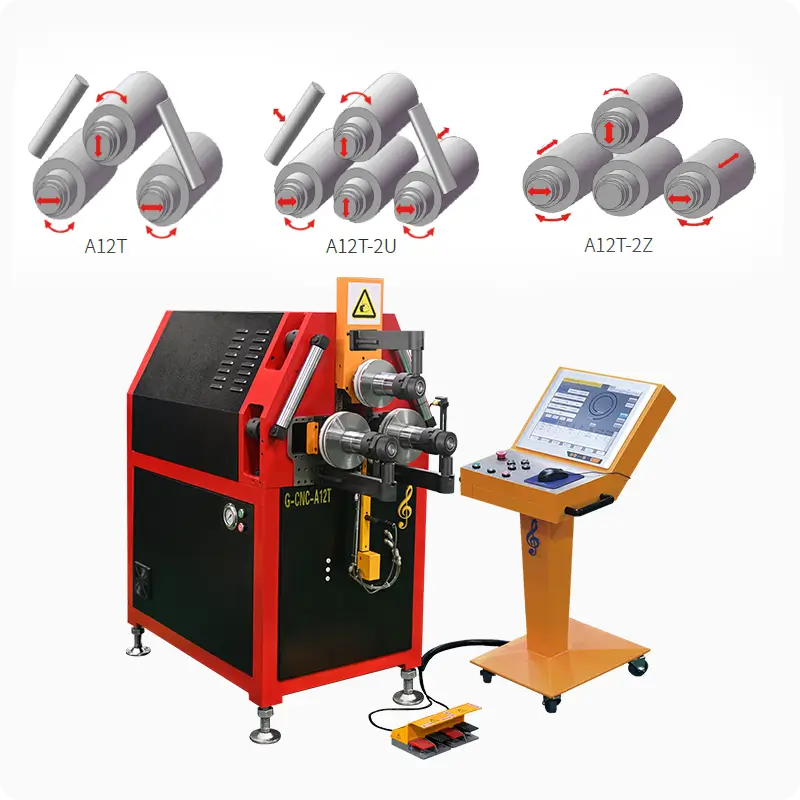

The G-CNC-A12T Profile Roll Bending Machine is designed for precise 2D and 3D profile bending applications across industries such as electric vehicles, rail transportation, aerospace, furniture, lighting, and architectural systems. Engineered for accuracy and flexibility, it supports profile cross-sections up to 60×60×3 mm and delivers efficient bending performance with a minimum bending radius of 5–8 times the section height. Ideal for modern manufacturing environments requiring reliable and high-quality profile forming solutions.

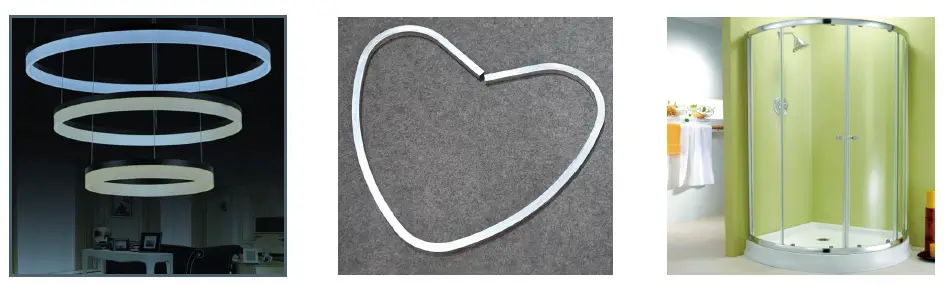

Application and Bending Capacity
Electric vehicles, rail transportation, escalators, aerospace, lighting, furniture, doors and windows, curtain wall,
bathroom hardware and fitness equipment.
Profile max cross-sectional area: 60*60*3mm.
Min. bending radius: section height* 5-8.
| Hydraulic Power | 12 t. |
|---|---|
| Y/Z-axis Repositioning Accuracy: | 0,01 mm |
| Y/Z-axis Stroke | 165/100 mm. |
| Shaft Diameter | 50 mm. |
| Shaft Length | 180 mm. |
| Torque | 1700 Nm. |
| X-shaft Distance | 180 – 380 mm |
| Individual Roller Speed | 1-20 rpm, CVT |
| Roller Drive: | Asynchronous motor |
| Power Supply | 3-Phase, 380V, 50Hz, 8.8KVA |
| Weight | 1000 kg. |
| Dimension (L x W x H) | :1400 x 675 x 1360 mm |
